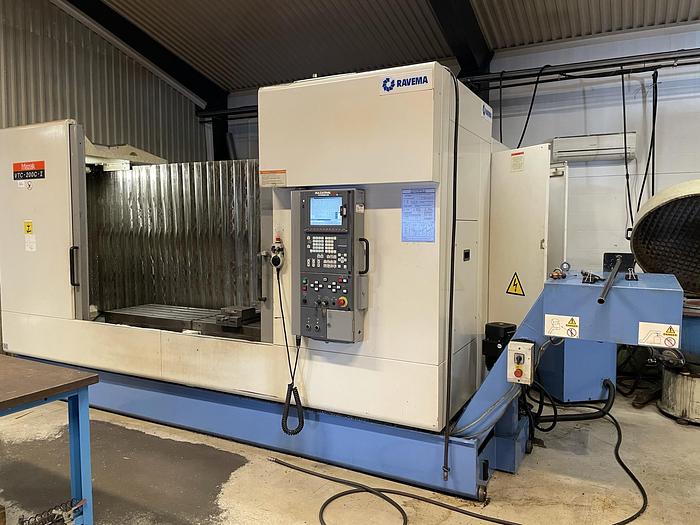

2003 Mazak VTC 200

No longer available

2003 Mazak VTC 200

Eskilstuna, Sverige

Beskrivning

x-travel 1660 mm

y-travel 510 mm

z-travel 510 mm

table surface area 2000 x 510 mm

spindle taper SK 40

spindle turning speed range 40 - 12.000 U/min

spindle drive 15 kW

control MAZATROL

control FUSION 640 M

rapid travel x/y/z 30 m/min

distance spindle nose and table 180 - 690 mm

table load max. 1000 kg

workpiece sizes max. 4000 x 655 x 640 mm

no. of tools in magazin 30

workpiece diameter at full load 80 mm

wotkpiece diameter with 2 vacant positions 110 mm

workpiece length 350 mm

weight of tools max. 8 kg

internal coolant system feed 15 bar

weight of the machine ca. 8,8 t

dimensions 4,1 x 3,15 x 2,6 m

Specifikationer

TillverkareMazak
ModellVTC 200
År2003
SkickBegagnad
LagernummerA5573949
